- Stock: 1000
- Model: Ricoh GEN4
- Weight: 0.45kg
- Dimensions: 18.00cm x 15.00cm x 6.00cm
- SKU: RH-HD-GN-4-7
Item specification : :
Ricoh GEN4 printhead 7pl Mantis AOJet G4 2-color printer head Mtutech TitanJet
The GEN4 greyscale printhead is suitable for a range of water, solvent and UV printers.
This printhead has an integrated heater and thermistor. This is original printhead and it
is covered by a manufacturer warranty. This GEN4 is available in two different cable lengths:
19cm long and 44cm long and a choice of hose barb ink inlet or o-ring sealed ink inlet.
Ricoh GEN4 print head 7pl Agfa Jeti Mira G4 2-color printhead Titan CET Color

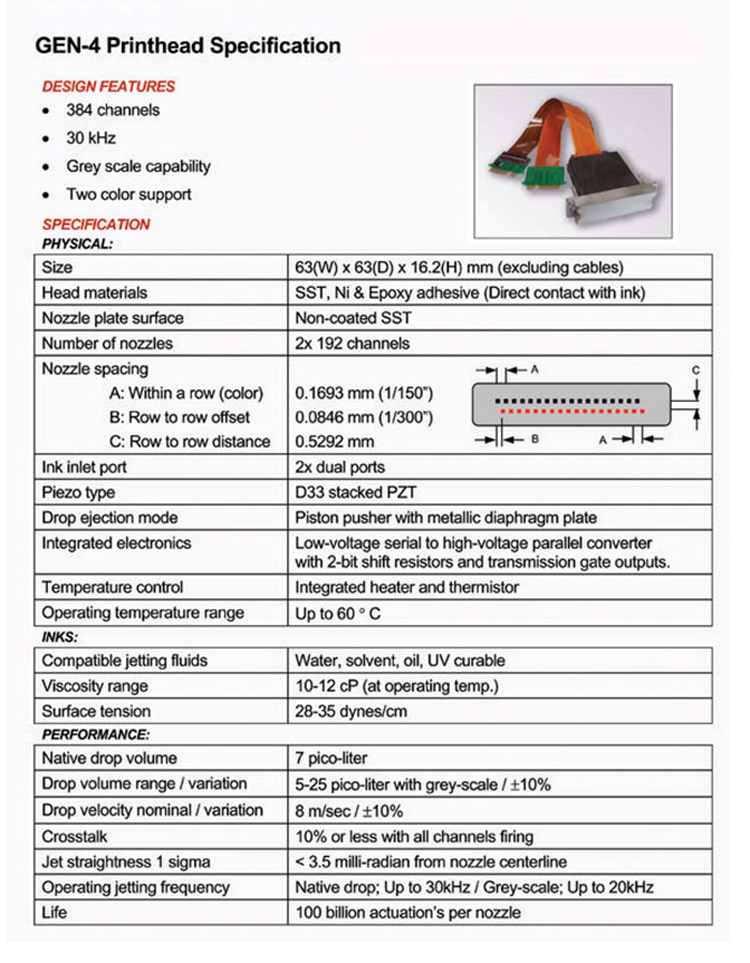

Technical Specifications
Size: 63 x 63 x 16,2 mm (excluding cables)
Head Materials: SST, Ni and Epoxy Adhesive
Nozzle Plate Surface: Non-coated SST
Number of Nozzles: 2 x 192 nozzles / 2-colors
Nozzle Spacing: 0,1693 mm
Piezo Type: D33 Stacked PZT
Temperature Control: Integrated Heater and Thermistor
Operator Temperature range: Up to 60° C
Native Drop Volume: 7 pl
Drop Volume Range: 5-25 pl with greyscale
Jetting Frequency: Up to 30 kHZ
Life: 100 billion actuations per nozzle
Printer compatible with :
Agfa : Jeti Mira MG2716 S/HS Jeti Mira MG2732 S/HS Jeti Tauro H2500 Jeti Titan S Jeti Titan HS, Mimaki JFX500-2131 / JFX200-2513 / UJV500-160 / JV400-130SUV / JV400-160SUV, CET Color Q5-250 / Q5-500 / Q5-1000 / Q5-250h / Q5-500h / Q5-1000h, Docan 1212 UV / M6 / M8 / M10 / R3300 / FR3210 / FRT3116 / R5200, Akad NovaJet UV M6, Handtop HT2512UV-D FR8 / HT1600UV HR4 / HT2500UV HR8 / HT3200UV HR8 / HT3200UV HG12 / HT3116UV FR8, TwinJet RH-3262 / RH-3264 / RH-1862 / RH-1864 / UV-F2500, MTMC TS - 1325G / MC - F2513G / MC - F2030G, Wit-Color UVIP 5R 3304 / UVIP 5B 2513 / UVIP 5B 3020 / UVIP 5R 3303 / UVIP B5100-2513, Vivex CS 3300, Mtutech MT-RH1510R, TitanJet 3302-G5N, Mantis MTS-UV1513RI, AOJet APRO 250FR, Caiyi UV2030 / UV2013 / UV2015 / UV2018 / UV2513 / UV2515 / UV2518 / UV2520, Rose Maxcan RGP-MC45-G5 / RGP-MC48-G5, Flora PP2512UV-G / PP1612UV-G / LJ 320G / LJ 180G, Indask F1212 UV / F2518 UV / F2030 UV / FR2510 UV / FRT3215 UV / FRT3225 / R3300 UV / R5200 UV, LavaPrint 4896-HRC / 78118-HRC, AmicaSystems FG2512, Mehta Rasterjet RJ2512 / Rasterjet RJ2512H / Rasterjet RJ2030 / Sprinter Turecolor TC-F1212 / Turecolor TC-F2512 / Turecolor TC-FR2512 / Turecolor TC-F2030 / Turecolor TC-FG2030 / POWER PRO 3200 / POWER 4S
